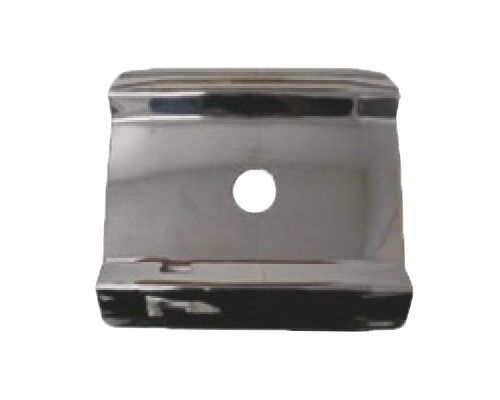

YOUR POSITION: HOME > Mine Anchor Plate > Strata Plate
Price:according to your drawings
Material:：
Size：
DESCRIPTION：Can be used with both flat and domed plates up to 150mm Square.
Physical Dimensions
|
Length(mm) |
Width(mm) |
Thickness(mm) |
Hole Diameter(mm) |
Weight(BLK)(Kg) |
Weight(GAL)(Kg) |
|
300 |
280 |
1.9 |
50 |
1.35 |
? |
|
300 |
280 |
1.9 |
50 |
? |
1.39 |
|
400 |
280 |
1.9 |
50 |
1.8 |
? |
|
400 |
280 |
1.9 |
50 |
? |
1.85 |
Material
1. Yield strength 210-310
2. Tensile strength 300-400
3. Elongation on 80mm, % 28-38
4. Hardness, HRB 50-65
General Features
1. Can be used with both flat and domed plates up to 150mm Square.
2. Are supplied with a slot for suspension of light services.
3. Suitable for direct use to the rock surface or with Mine Mesh.
Packaging
1. Strata Plates are clamped together in bundles of 10 and then palletized.
2. This product is made to the Australian Standard 1594.
