The anchor cable is installed and pre-tightened in exactly the same way as the resin anchor (thread fastening), cancel the tensioning process, not only can the mixing and tensioning integration be quickly installed, but also the anchor cable and the anchor can be synchronously supported to form an integral support.
New structure for cable body and locking structure, minimize the diameter of the cable body while ensuring the passage of the grouting, the required installation aperture is also much smaller, the installation efficiency is high, and the small aperture and large tonnage are realized; the anchor cable body is a new hollow structure, with its own grouting core tube, and adopting the reverse grouting method, which not only eliminates the possibility of generating cavitation voids, but also eliminates the need to bind the grouting pipe, exhaust pipe and plugging note on site, pulp holes make construction steps much simpler.
The upper part of the cable body is a stirring resin coil end anchor, the lower end is threaded and locked, and can be immediately loaded after installation, this is impossible for the existing grouting anchor cable products, and for the roof with poor self-stabilization ability, rock formations are very beneficial and necessary; with the thread locking method, the locking mechanism works reliably, does not slip, does not produce sparks, and adapts to the wet and drenched environment of the well is unmatched by the locking method of the clip anchor.
The anchoring strength of the anchor cable made of high-strength spiral rib prestressed steel wire is increased by more than 15% compared with the anchor cable cut by the same diameter of the steel strand, and the anchoring ductility can be increased by more than 25%. Since it can be loaded immediately after installation, the grouting can be arranged to fill a certain range of anchor cables at a certain distance behind the head, so the construction is very convenient; the thread locking mechanism has a self-aligning function, and the exposed length of the anchor cable is small and uniform, and does not affect the effective height of the roadway.
Contact Us
Application of Mine Cable Bolt

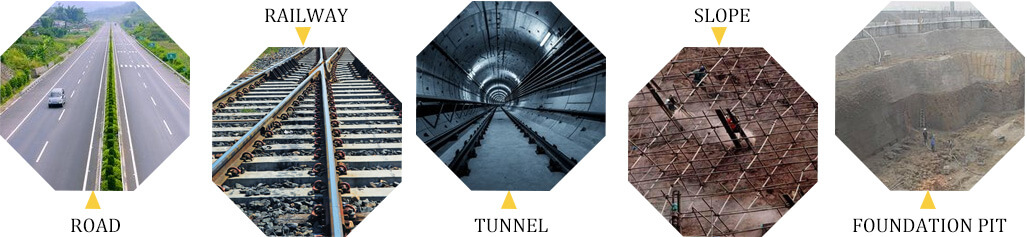

It is suitable for medium-grade geological conditions, good long-term support of surrounding rock, advanced support of roads, railways and tunnels, slope support, foundation pit support and other projects, it can be solidified by pressure grouting of hollow anchor body, the fractured rock mass is improved and the rock mass is improved to achieve good support.
Company Profile
Zhongxiang Mine Support Factory as one subsidiary of Zhongxiang Steel Group, which established 4 modern production sites specialized in mine tunnel support products and accessories.
Zhongxiang Steel Group as a large integrated steel enterprise is engaging in production and sales from 1997 with Import and Export License. We do domestic and overseas sales of mine steel arches, rock bolt, anchor mesh, mine support accessories, steel rails(light rails, heavy steel rails, crane steel rails) and track accessories, steel plates, as well as steel plate processing.
Zhongxiang Mine Support Factory under the leading of Zhongxiang Steel Group, we keep pace with the times and work with you sincerely to create a brighter future.
