Product Introduction

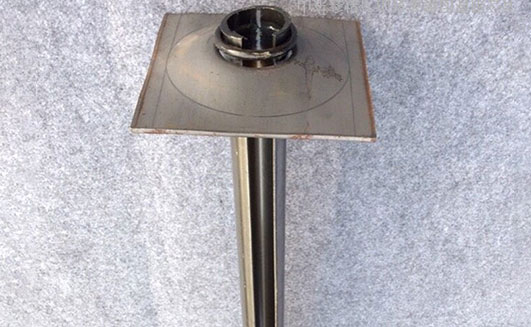

The split bolt is a new type of anchor that fully anchors the rock and actively strengthens the surrounding rock, its three-dimensional part is a longitudinally slit high-strength steel pipe, when installed in a drill hole that is slightly smaller than the pipe diameter, it can immediately apply radial pressure to the hole wall and prevent the surrounding rock from sliding down, together with the supporting force of the bolt tray pallet, the surrouding rock is in a three-direction stress state and the rock formation is stabilized.
ZongXiang strives to create the reliable products for you, phone: +86-199 3712 3680
Specification
Outer diameter(mm): Φ30、Φ33、Φ40、Φ39、Φ43、Φ46、Φ47（±0.5）；
Length(mm): 450、900、1200、1500、1800、2000、2500、 2800 、3200、3400;
Material: Q235，16Mn，20 Mnsi;
Thickness: 2.0-3.0.
Contact Us
Product Features
- 1、The easiest to install;
- 4、High-strength alloy strip steel;
- 2、The roadway height is greater than the bolt length;
- 5、 High shear and tensile strength;
- 3、The friction is large;
- 6、No anchoring agent required;
- 7、Equipped with a high-strength tray, the tray is evenly stressed;
Technical Requirements
-
The surface of the split bolt should be flat without serious strain and corrsion. The weld should be free from cracks, no slag inclusions, and not allowed to burn through the pipe wall. The tray should be free to move on the rod. It is advisable that the retaining ring interface and the pipe opening are misaligned 170o-190o.
-
Retaining ring weld pull-out force≥80KN, Rod ultimate tensile strength≥110KN, Initial anchoring force≥25KN/m, Pallet bearing capacity≥65KN.
Company Profile
Zhongxiang Mine Support Factory as one subsidiary of Zhongxiang Steel Group, which established 4 modern production sites specialized in mine tunnel support products and accessories.
Zhongxiang Steel Group as a large integrated steel enterprise is engaging in production and sales from 1997 with Import and Export License. We do domestic and overseas sales of mine steel arches, rock bolt, anchor mesh, mine support accessories, steel rails(light rails, heavy steel rails, crane steel rails) and track accessories, steel plates, as well as steel plate processing.
Zhongxiang Mine Support Factory under the leading of Zhongxiang Steel Group, we keep pace with the times and work with you sincerely to create a brighter future.
